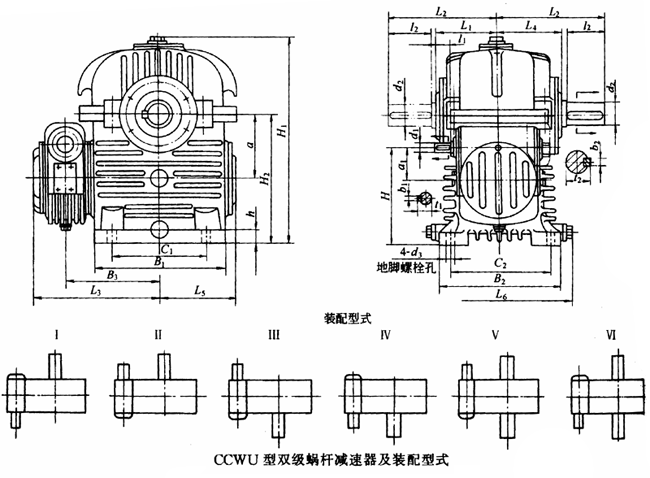

型號\尺寸 |
a |
a1 |
B1 |
B2 |
B3 |
C1 |
C2 |
i≤400 |
i≥500 | ||||||||
d1 |
l1 |
b1 |
t1 |
L1 |
d1 |
l1 |
b1 |
t1 |
L1 | ||||||||
CCWU100 |
100 |
63 |
225 |
240 |
180 |
190 |
200 |
19j6 |
28 |
6 |
21.5 |
128 |
19j6 |
28 |
6 |
21.5 |
128 |
CCWU125 |
125 |
63 |
260 |
250 |
200 |
220 |
205 |
19j6 |
28 |
6 |
21.5 |
128 |
19j6 |
28 |
6 |
21.5 |
128 |
CCWU160 |
160 |
80 |
325 |
300 |
235 |
230 |
250 |
24j6 |
36 |
8 |
27 |
151 |
24j6 |
36 |
8 |
27 |
151 |
CCWU200 |
200 |
100 |
400 |
350 |
300 |
280 |
300 |
28j6 |
42 |
8 |
31 |
182 |
24j6 |
36 |
8 |
27 |
176 |
CCWU250 |
250 |
125 |
510 |
410 |
370 |
370 |
350 |
32k6 |
58 |
10 |
35 |
218 |
28j6 |
42 |
8 |
31 |
202 |
CCWU315 |
315 |
160 |
640 |
530 |
455 |
470 |
445 |
42k6 |
82 |
12 |
45 |
277 |
32k6 |
58 |
10 |
35 |
253 |
CCWU355 |
355 |
160 |
730 |
580 |
500 |
540 |
490 |
42k6 |
82 |
12 |
45 |
277 |
32k6 |
58 |
10 |
35 |
253 |
CCWU400 |
400 |
200 |
790 |
620 |
545 |
620 |
530 |
48k6 |
82 |
14 |
51.5 |
324 |
38k6 |
58 |
10 |
41 |
300 |
CCWU450 |
450 |
200 |
885 |
680 |
597 |
700 |
580 |
48k6 |
82 |
14 |
51.5 |
324 |
38k6 |
58 |
10 |
41 |
300 |
CCWU500 |
500 |
250 |
1015 |
750 |
695 |
760 |
640 |
55m6 |
82 |
16 |
59 |
380 |
42k6 |
82 |
12 |
45 |
380 |
型號\尺寸 |
d2 |
l2 |
b2 |
t2 |
L2 |
L3 |
L4 |
L5 |
L6 |
h |
H |
H1 |
H2 |
d3 |
質量m/kg |
CCWU100 |
48k6 |
82 |
14 |
51.5 |
212 |
250 |
121 |
133 |
139 |
25 |
175 |
340 |
212 |
14.5 |
70 |
CCWU125 |
55m6 |
82 |
16 |
59 |
222 |
270 |
133 |
153 |
147 |
30 |
188 |
408 |
250 |
18.5 |
102 |
CCWU160 |
65m6 |
105 |
18 |
69 |
270 |
317 |
156 |
186 |
172 |
35 |
240 |
510 |
320 |
18.5 |
160 |
CCWU200 |
80m6 |
130 |
22 |
85 |
325 |
400 |
180 |
235 |
197 |
40 |
300 |
650 |
400 |
24 |
295 |
CCWU250 |
100m6 |
165 |
28 |
106 |
385 |
485 |
209 |
285 |
228 |
45 |
350 |
785 |
475 |
28 |
445 |
CCWU315 |
120m6 |
165 |
32 |
127 |
420 |
600 |
242 |
352 |
289 |
50 |
440 |
980 |
595 |
35 |
780 |
CCWU355 |
130m6 |
200 |
32 |
137 |
470 |
645 |
255 |
397 |
315 |
55 |
460 |
1085 |
655 |
35 |
990 |
CCWU400 |
150m6 |
200 |
36 |
158 |
490 |
705 |
277 |
429 |
335 |
60 |
515 |
1175 |
715 |
35 |
1350 |
CCWU450 |
170m6 |
240 |
40 |
179 |
560 |
757 |
299 |
484 |
367 |
65 |
555 |
1310 |
805 |
42 |
1810 |
CCWU500 |
190m6 |
280 |
45 |
200 |
640 |
890 |
343 |
549 |
403 |
80 |
650 |
1450 |
900 |
42 |
2580 |
